How to Hook Up an External Hard Drive to a Direc. TV DVRA 1. TB external hard drive can store up to 2. TV shows in HD. Adding an external hard drive to your Direc. TV digital video recorder can increase your unit's storage capacity, allowing you to record more of your favorite shows and store space- consuming high- definition programming for later viewing. Unfortunately, not all Direc.
View and Download DirecTV Genie user manual online. Directv HD DVR Receiver. Genie DVR pdf manual download. Activated receivers cannot be returned to Solid Signal and must be handled by DIRECTV unless they are defective; Now record 5 shows in HD at once, all with. Adding an external hard drive to your DirecTV digital video recorder can increase your unit's storage capacity, allowing you to record more of your favorite shows and.
TV DVRs can utilize an external hard drive; you can only connect an external hard drive to your device if you have a R2. Direc. TV Plus DVR or HR2. Direc. TV Plus HD DVR. The model number for your device is located on the small door on the front of your receiver.
View and Download DIRECTV PLUS DVR - MANUEL 2 manual online. PLUS DVR - MANUEL 2 Receiver pdf manual download. DirecTV's Genie DVR can record up to five shows at once, and play back video to up to four TVs at once. The DVR is a piece of technology that brings. How to Download DVR Recordings. If your DVR's available memory is almost full with programs you've saved, you want to find a way to keep them without taking up space.

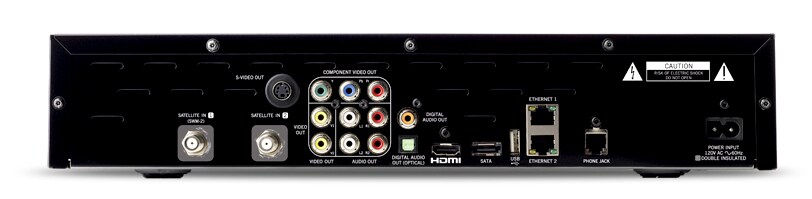

Step 1. Unplug the DVR from the power supply and locate the port labeled . It may take several moments for the hard drive to begin spinning. Many e. SATA hard drives can be powered by USB or an external power supply.
Step 4. Plug in your DVR and press the . Once restarted, the DVR will automatically detect the new hard drive and use it as the primary storage device. Tip. While any external hard drive utilizing an e. SATA connection can be connected to your DVR, Direc.
TV recommends the Western Digital 5. GB (model WDG1. S5. TB (model WDG1. S1. Seagate 1. TB (models ST3. SCA1. 09- RK and STAP1. GB (model ST3. 05. SCA1. 09- RK) hard drives.
Warnings. Once connected to your DVR, the external hard drive is treated as the primary storage device, meaning you cannot access programs stored on the internal hard drive until you remove the external hard drive. During the installation process, the external hard drive becomes paired with your DVR and cannot be used with another DVR unless it is reformatted.
About the Author. Anthony Oster is a licensed professional counselor who earned his Master of Science in counseling psychology at the University of Southern Mississippi. He has served as a writer and lead video editor for a small, South Louisiana- based video production company since 2. Oster is the co- owner of a professional photography business and advises the owner on hardware and software acquisitions for the company.
Photo Credits. Banana. Stock/Banana. Stock/Getty Images.
How to Transfer Shows From a Direc. TV Receiver to a Hard Drive. By Danielle Fernandez. Direc. TV allows customers with the appropriate DVR equipment to transfer and view recorded programming on a separate hard drive. To increase the recording space available, you can use the e.
SATA connection on the back of your DVR to connect a compatible external hard drive. To completely transfer content from your DVR to your computer and save programming to a hard drive for viewing later, you will need to use Direc. TV2. PC or the Genie. Go service and capture the video using recording software. Increase Recording Space With an External Hard Drive.
Step 1. Check the model number, located inside the small door at the bottom right corner on the front of the Direc. TV DVR receiver, to verify that it is either an R2. Direc. TV Plus DVR) or HR2. Direc. TV Plus HD DVR).
Step 2. Power off the receiver and disconnect the power cord from the back. Step 3. Connect an e.
SATA hard drive to the e. SATA port on the back of the DVR. Step 4. Plug in and power on the e.
SATA hard drive. Allow it to initialize. Step 5. Plug in and power on your Direc. TV DVR receiver. After reboot, it will disable the internal hard drive and transfer new programming to the external hard drive. Using Direc. TV2. PC to Access DVR Programming.
Step 1. Ensure your Direc. TV DVR is connected to the Internet using the Wireless Direc. TV CINEMA Connection Kit, available separately from Direc. TV. If you do not have a Whole Home DVR, you can use an Ethernet cable connected from the DVR to your home router (see link in References for connection instructions).
Step 2. Select the . Enter your name and email address so that Direc. TV can email you the activation key for software setup and click . Check your email for a confirmation and activation key from Direc. TV, and enter it when prompted by the installer. Step 4. Launch the Direc.
TV2. PC software and use the menu, which is similar to the program guide on your DVR, to select programming for playback. Using Genie. GO to Access DVR Programming.
Step 1. Plug one end of an Ethernet cable into the back of Genie. GO and the other end into your Wireless Direc. TV CINEMA Connection Kit. Step 2. Connect the power supply to the Genie. GO device and power it on. Step 3. Download the Genie.
GO app to your computer or mobile device (link in Resources). Follow the on- screen instructions to activate the device and register your applications.
Step 4. Select programming from the list of shows available on your DVR to broadcast it to your computer or mobile device - - you can select from shows you have already recorded or shows you are currently recording live. Capturing Video Using Screencast- O- Matic. Step 1. Download and install the Screencast- O- Matic software to your computer (link in Resources). Launch the software when it is installed. Step 2. Use your mouse to draw a bounding box around the video window of your Direc. TV streaming software. This defines the portion of your computer screen that will be captured to video.
Step 3. Press . You can also modify the output size, rescale or add notes and captions. Tips & Warnings. If you are considering the purchase of a new external hard drive for the purpose of storing your Direc. TV programming, the company suggests the following e. SATA models: Western Digital 5. GB (WDG1. S5. 00.
Western Digital 1. TB (WDG1. S1. 00. Seagate 1. TB (ST3.
SCA1. 09- RK or STAP1. Seagate 5. 00. GB (ST3. SCA1. 09- RK). Direc. Thuppakki 2012 Telugu Mp3 Songs Free Download. TV2. PC does not require special hardware installed on your home entertainment system, but it is only compatible with PCs.
The Genie. GO application requires the purchase and installation of the separate Genie. GO device on your home entertainment system, but you can use it to view programming on a variety of platforms - - PC, Mac or any mobile device. If you do not see the email containing your activation key in your general inbox, check your spam folder. The free version of Screencast- O- Matic embeds a small, unobtrusive watermark in the bottom left of the video frame and limits you to 1. The paid version does not embed a watermark or limit your recording time.
How to Back Up Files From My Direc. TV HD DVRBy Greyson Ferguson. When using a Direc. TV DVR (digital video recorder), you can record programming from your satellite service at any time you wish, allowing you to view the content at a later date. If you want to back up your show recordings onto your computer or other device, you need to record the Direc. TV HD DVR content onto an external hard drive. Things You'll Neede.
SATA external hard drive. USB data cable. Step 1. Power down the Direc. TV HD DVR. Plug the e. SATA cable into the e. SATA connection port on the rear of the device.
Attach the other end of the cable into the e. SATA port on your external hard drive. The e. SATA cable provides a superior connection method faster than both USB and Fire. Wire. Step 2. Power on the e. SATA hard drive and turn on the Direc. TV HD DVR. The Direc.
TV equipment automatically detects the hard drive and records all future saved content onto the new hard drive. Step 3. Power down the Direc. TV HD DVR and the e.
SATA hard drive after you have recorded programming. Step 4. Insert the USB data cable onto the USB port on the hard drive. Connect the free end into a USB port on the computer. Power on the hard drive.
The computer wil state it has detected the equipment. Step 5. Click Start. A window loads with all the files currently saved on the drive, including the recorded Direc. TV DVR files. Click- and- drag the saved files from the open window onto the desktop to back up the information onto your computer.
